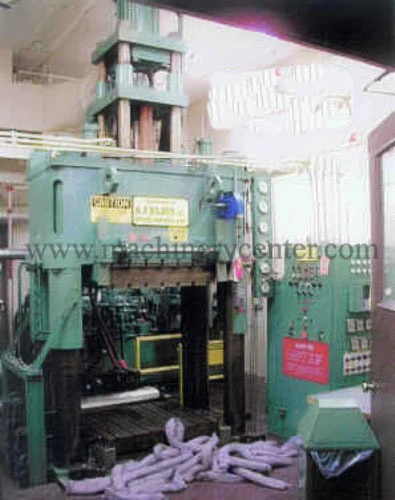

400 Ton K.R. Wilson UpStroke Hydraulic Transfer Molding Press '71

Ton: 400
Top Transfer: 100 Ton
Stroke of Hydraulic Transfer Ram - 18"
Post: 4 w/an 8" Diameter
Post Distance: 58" L to R x 17" F to B
Nominal Platen: 58" L to R x 38" F to B (T-Slotted)
Overall Platen: 78" L to R x 38" F to B (T-Slotted)
Max Daylight: 64"
Max Stroke of Fully Guided Platen: 32"
Max Stroke of Top/Bottom Hydraulic Rack & Pinion: 6"
Bolster (2):
42" L to R x 36" F to B x 5" Thick (T-Slotted)
Max Daylight Between Bolsters - 54"
Stripper Bar Distance: 42"

Clamp Speed:
480" Min Closing
60" Min Pressing to 400 Ton
480" Min Return

Transfer Speed:
170" Min Closing
50" Min Pressing to 100 Ton
70" Min Return
