Equipment
Plastic Manufacturing
Sprue Pickers - Brand New

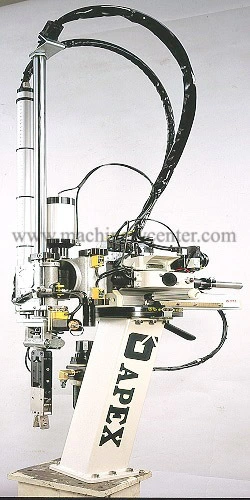

Apex "ST-650D" Low Cost & Flexible Sprue Picker w/Wrist Flip '18

Apex "ST-650D" Low Cost & Flexible Sprue Picker w/Wrist Flip '18

Have one to sell?
(561) 953-9100
sales@machinerycenter.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Sprue Pickers - Brand New
Manufacturer:
APEX
Model:
ST-650D
Year:
2016
Stock #:
25742
Status:
For Sale

Description

Apex "ST-650D" Low Cost & Flexible Sprue Picker w/Wrist Flip '18

Vertical650mm (Telescopic)650mm (Telescopic)
Strip120mm120mm
Z-Axis45/90D Swing Stroke (Pneumatic Drive)45/90D Swing Stroke (Pneumatic Drive)
Voltage120/220 Volts AC, Single Phase120/220 Volts AC, Single Phase
Payload6.6 Lbs.6.6 Lbs.
Take Out.6 Sec.6 Sec
Cycle3.6 sec3.6 sec
Air Consumption.37 CF Cycle.37 CF Cycle
Optimum Use125-250 Ton Press125-250 Ton Press
ControlLCD Digital PendantLCD Digital Pendant
Dimensions27" x 18" x 65"T Heavy Duty Corrugated Shell27" x 18" x 65"T Heavy Duty Corrugated Shell
Weight119 Lbs.119 Lbs.

Features:
Powerful User Friendly Controls
Patented Sprue Grip w/Reliable Pressure
Differential Runner Verification

Options:
Vacuum Circuit w/Adjustable End of Tooling $450.00

Notes:
Apex ST Series Sprue Picker
The Apex ST Series Sprue Pickers are designed for quick cycle times and a rapid payback. These high
quality units are designed to be easy to install and operate with minimal maintenance requirements.

10 Pre-Set and 10 User Programmed Sequences
Easily adjusted motion and timer settings
(1) Spare Output
SPI/Euromap Robot/IMM Electrical Interface
(Robot Side only, 32 pin std, 50 pin avail)
