1124 Ton, 221.1 Oz. Demag Injection Molding Machine '04

Have one to sell?

sales@machinerycenter.com

ConditionUsed

Quantity

1 available

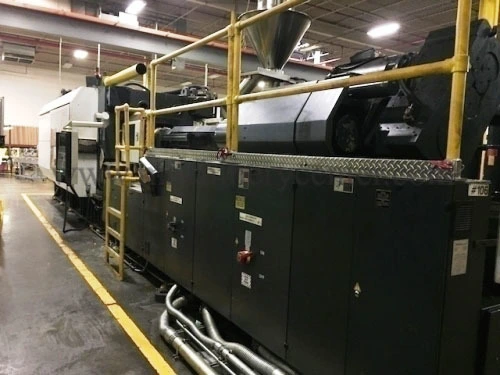

2004 DEMAG 1000/1400-16000 Injection Molders 901 Ton & Over | Machinery Center (1)

2004 DEMAG 1000/1400-16000 Injection Molders 901 Ton & Over | Machinery Center (2)

2004 DEMAG 1000/1400-16000 Injection Molders 901 Ton & Over | Machinery Center (3)

2004 DEMAG 1000/1400-16000 Injection Molders 901 Ton & Over | Machinery Center (4)

2004 DEMAG 1000/1400-16000 Injection Molders 901 Ton & Over | Machinery Center (5)

2004 DEMAG 1000/1400-16000 Injection Molders 901 Ton & Over | Machinery Center (6)

2004 DEMAG 1000/1400-16000 Injection Molders 901 Ton & Over | Machinery Center

Have one to sell?

Overview

Type:

Injection Molders 901 Ton & Over

Manufacturer:

Model:

1000/1400-16000

Year:

2004

Stock #:

25745

Status:

For Sale

Description

1124 Ton, 221.1 Oz. Demag Injection Molding Machine '04

Specifications

ImperialMetric

Year	2004	2004
Tonnage	1124	1124
Shot Size	221.1	221.1
Platen Size	76.77" x 65.75"	76.77" x 65.75"
Tie Bar Spacing	55.12" x 44.09"	55.12" x 44.09"
Mold Height (Min)	19.69"	19.69"
Mold Height (Max)	47.24'	47.24'
Daylight	96.46"/ 108.27"(Max - Std./Opt.)	96.46"/ 108.27"(Max - Std./Opt.)
Ejector Stroke	13.78"	13.78"
Clamp Stroke	49.21"	49.21"
Screw Diameter	133mm	133mm
Core Pull	Yes	Yes
Control	NC-IV	NC-IV

Equipped With

221.1 Oz. Injection Unit
Core Pull
Air Blow
(9) Accumulators
