Features:
AC Brushless Servo Motor Drive with accuracy to +/- 0.1mm (0.004").
Unique wrist flip design reduces mold open and protects tooling with a vertical position lock
for loss of air pressure. Coordinated Motion of the Servo Axes allows maximum flexibility and speed.
Individual control allows unparalleled control.
High quality precision linear bearings allow for optimum speed and reliability.
Available in Single Stage and Telescoping Vertical Arm designs as well as Single and Dual Arm Units
for 3 Plate Molds (Dual Arm Units feature 5 Servo axes).

Control:
Flexible and Powerful State of the Art Programmable
Fully user programmable touch screen control.

Individual function keys on control to allow user friendly programming.

Programmable Sub-Routines allow programming flexibility for Reject Parts, Stacking sequences and Insert sequences.

Speed, Position and Timers can be adjusted during operation.

Diagnostics, I/O Status and error messages on pendant.

Transfer and save programs with USB port.

Easily adjusted motion and timer settings 14 Spare Inputs & 12 Spare Outputs for auxiliary equipment interface.

Standard SPI/EUROMAP molding machine interface with connector.

Notes:

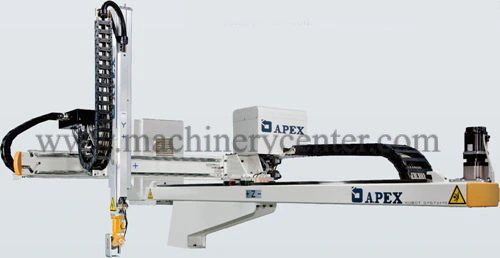

The Apex SB Series Servo Traversing Robots features AC Brushless Servo Drive on the Strip, Vertical and Traverse Strokes for the ultimate in speed and flexibility. The servo drives allow for fast cycles
along with enhanced in-mold and secondary positioning and motion sequences. This robot is the
ultimate in flexibility at an unbelievable price!
