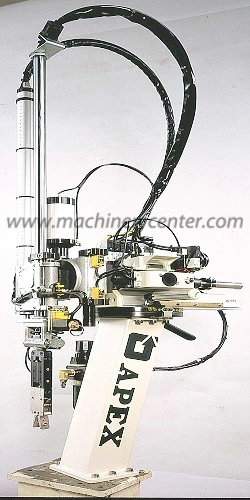

Apex "ST-950D" Low Cost & Flexible Sprue Picker w/Wrist Flip '17

Apex "ST-950D" Low Cost & Flexible Sprue Picker w/Wrist Flip '17

Have one to sell?
(561) 953-9100
sales@machinerycenter.com
$6,700.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Sprue Pickers - Brand New
Manufacturer:
APEX
Model:
ST-950D
Year:
2017
Stock #:
26051
Status:
For Sale

Description

Apex "ST-950D" Low Cost & Flexible Sprue Picker w/Wrist Flip '17

Vertical950mm (Telescopic)950mm (Telescopic)
Strip120mm120mm
Z-Axis45/90D Swing Stroke (Pneumatic Drive)45/90D Swing Stroke (Pneumatic Drive)
Voltage120/220 Volts AC, Single Phase120/220 Volts AC, Single Phase
Payload6.6 Lbs.6.6 Lbs.
Take Out1.2 Sec1.2 Sec
Cycle4.2 Sec4.2 Sec
Air Consumption.48 CF Cycle.48 CF Cycle
Optimum Use400-700 Ton Press400-700 Ton Press
ControlLCD Digital PendantLCD Digital Pendant
Dimensions30" x 23" x 66" Strapped to Metal Skid30" x 23" x 66" Strapped to Metal Skid
Weight196 Lbs.196 Lbs.

Features:
Powerful User Friendly Controls
Patented Sprue Grip w/Reliable Pressure
Differential Runner Verification

Options:
Vacuum Circuit w/Adjustable End of Tooling $450.00

Notes:
Apex ST Series Sprue Picker
The Apex ST Series Sprue Pickers are designed for quick cycle times and a rapid payback. These high quality units are designed to be easy to install and operate with minimal maintenance requirements.

Weight:
Approx. 130 lbs.

Dimensions:
27" x 18" x 65"T Heavy Duty Corrugated Shell

10 Pre-Set and 10 User Programmed Sequences
Easily adjusted motion and timer settings
(1) Spare Output
SPI/Euromap Robot/IMM Electrical Interface
(Robot Side only, 32 pin std, 50 pin avail)
