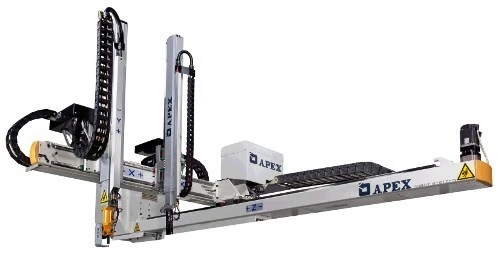

Apex SB1200DM "Traverse Double Arm" Servo Robot '17

Apex SB1200DM "Traverse Double Arm" Servo Robot '17

Have one to sell?
(561) 953-9100
sales@machinerycenter.com
ConditionUsed
1 available
$38,100.00 USD
Have one to sell?

Overview

Type:
Robots - Brand New
Manufacturer:
APEX
Model:
SB1200DM
Year:
2017
Stock #:
26093
Status:
For Sale

Description

Apex SB1200DM "Traverse Double Arm" Servo Robot '17

Vertical (X-Axis)1200mm(Main) / 1250mm(Sub)1200mm(Main) / 1250mm(Sub)
Strip (Y-Axis)570mm(Main) / 570mm(Sub)570mm(Main) / 570mm(Sub)
Traverse (Z-Axis)2060mm2060mm
Optimum Use450 TO 650 TON450 TO 650 TON
ControlTouch Screen w/Numerous Sample ProgramsTouch Screen w/Numerous Sample Programs
Weight682 Lbs.682 Lbs.

Main Arm Payload: 17.6 lbs.
Sub Arm Payload: 6.6 lbs.
Air Pressure: 70 to 90 PSI
Wrist Flip: 90D
Dry Cycle: Take Out 1.4 Sec

Features:
Fully User Programmable
AC Brushless Servo Motor
Diagnostic I/O Status & Error Message on Pendant
Programmable Sub-Routines for Reject Parts, Stacking
Sequence and Insert Sequence
Transfer & Save Programs with USB Port
Motion & Timer Settings

Notes:
Robot Mounting Adapter $950.00

(1) Vacuum Grip Circuit w/Part Sensing
Versatile Vacuum Cut End of Arm Tooling
(1) Part Grip Circuit w/Verification Circuit
14 Spare Inputs
12 Spare Outputs for Auxiliary
User Manual
