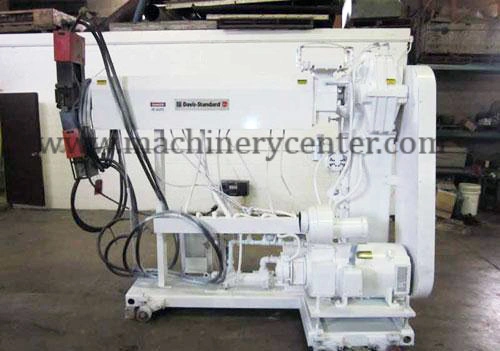

2.5" Davis Standard Single Screw Extruder '94
Extruders - 2" To 2-1/2"2.5" Davis Standard Single Screw Extruder '94
Inch(es) | 2.5" |
L/D Ratio | 32:1 |
HP | 50 |
Gearbox Ratio | 7.42:1 |
Water Cooled | Yes |
Voltage | 500 |
1750/2100 RPM
DC Motor 60HP Capacity
With A Service Factor of 1 @ 100 RPM
(4) Zone
Electrically Heated
Vented Barrel
A Centerline Of: 70"
Mounted On a Unitized Base With Casters
Beringer 2.5" Side Plate Screen Changer
**Controls and Drive Panel NOT INCLUDED**
