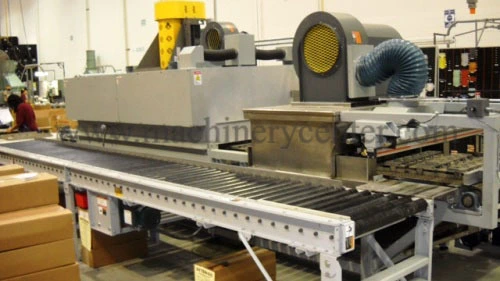

Infrared Technologies Tube Setting Oven System '10

Click Spec Sheet: Diagram
Total Oven KVA: 69.120
Belt Speed: 5/14.4" p/min.
Residence Heat Zone: 19.2/6.7 p/min.
Heat/Cool Zones: 1 Each
Heat/Control Zone: 104"L x 36"W x 8" Opening Height
Load Zone: 24"L, (27" Overall), 36 W
Required Part Temp: 212F - 290F

Electronics:
480V; 77 KVA; 100 Amp Line; 50 KW

Throughput:
400 Parts p/hr.

Hours:
12,000

Control:
Allen Bradley Panel View 600
Hammond NEMA 12 Electrical Enclosure
72"H x 48"W x 18D

Water Quench Cool Zone:
36"L x 36"W x 8" Opening Height

Conveyor Belt:
Combination of Infrared/Convection System
(1) Heat Zone of 8"L w/Single Plug-Style Backward
Incline recirculation Blower with a fully distributed hold pattern for convective assistant heating. (48) 36" Burn Length; 1140 Watts
Medium Wave Quart Tube Heating Elements 215" x 50"W x 34" with +2 Adjustability
Overall Dims are 36"W
Inverter Duty 3/4 to 1HP (4) E-Stops

Heat Zone Insulation:
Aluminum Coated Steel Hot Face with 4" of backing insultation for minimal heat loss.
(2 layers of 2" Ceramic Wool)

Shipping Info:
The power supplier is the tallest at 72" and would ship as 3 pieces- The Power supply module, the
Oven/quench unit, and the return conveyor. It weighs approx. 8000#
