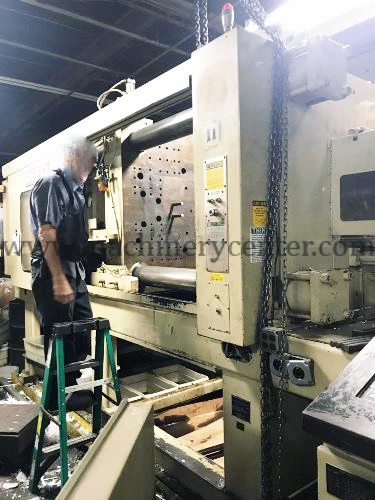

700 Ton, 160 Oz. Reed Injection Molding Machine '89

Have one to sell?

sales@machinerycenter.com

ConditionUsed

Quantity

1 available

$14,500.00 USD

1989 REED 700TJ-160 Injection Molders 601 To 700 Ton | Machinery Center (1)

1989 REED 700TJ-160 Injection Molders 601 To 700 Ton | Machinery Center (2)

1989 REED 700TJ-160 Injection Molders 601 To 700 Ton | Machinery Center (3)

1989 REED 700TJ-160 Injection Molders 601 To 700 Ton | Machinery Center (4)

1989 REED 700TJ-160 Injection Molders 601 To 700 Ton | Machinery Center (5)

1989 REED 700TJ-160 Injection Molders 601 To 700 Ton | Machinery Center

Have one to sell?

Overview

Type:

Injection Molders 601 To 700 Ton

Manufacturer:

Model:

700TJ-160

Year:

1989

Stock #:

26399

Status:

For Sale

Description

700 Ton, 160 Oz. Reed Injection Molding Machine '89

ImperialMetric

Year	1989	1989
Tonnage	700	700
Shot Size	160	160
Platen Size	55.25" x 55.25"	55.25" x 55.25"
Tie Bar Spacing	36.75" x 36.75"	36.75" x 36.75"
Mold Height (Min)	10"	10"
Mold Height (Max)	36.70"	36.70"
Daylight	70.70"	70.70"
Ejector Stroke	8.20"	8.20"
Clamp Stroke	34"	34"
Voltage	480	480
Control	Cyclemaster II	Cyclemaster II
Dimensions	36"L x 8'3.5"W x 9'11"H	36"L x 8'3.5"W x 9'11"H
Weight	91,380 Lbs.	91,380 Lbs.

Maximum Mold Size: 36.75" x 55.25"

160 Oz. Injection Unit
