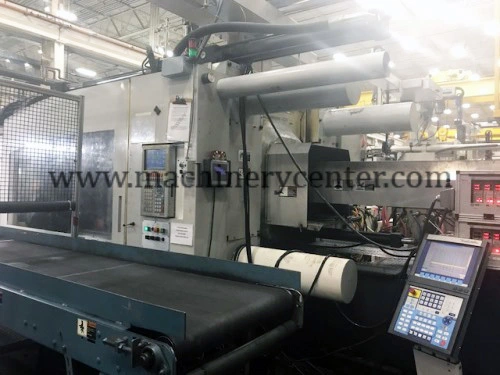

1100 Ton, 140 Oz. Demag Injection Molding Machine '04

1100 Ton, 140 Oz. Demag Injection Molding Machine '04

Have one to sell?
(561) 953-9100
sales@machinerycenter.com
$74,500.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Injection Molders 901 Ton & Over
Manufacturer:
DEMAG
Model:
CALIBER 1100
Year:
2004
Stock #:
26513
Status:
For Sale

Description

1100 Ton, 140 Oz. Demag Injection Molding Machine '04

Year20042004
Tonnage11001100
Shot Size140140
Platen Size68.90" x 59.10"68.90" x 59.10"
Tie Bar Spacing55.10" x 45.30"55.10" x 45.30"
Mold Height (Min)19.7"19.7"
Mold Height (Max)51.2"51.2"
Daylight93.50"93.50"
Ejector Stroke10.8"10.8"
Ejector Force24.2 Ton24.2 Ton
Clamp Stroke73.8"73.8"
Screw Diameter4.33"4.33"
Voltage460460
Core PullYesYes
ControlP3000P3000
Dimensions34.5'L x 11.1'W x 8.7'H34.5'L x 11.1'W x 8.7'H
Weight125,000 Lbs.125,000 Lbs.

Clamping Unit: Hydraulic
Opening Force: 59 Ton
Injection Pressure: 19,800 psi
Screw Stroke: 17.2"
HP: 125

140 Oz. Injection Unit
(1) Stationary Platen Core Pull
(1) Moving Platen Core Pull
Air Blow
Robot Interface

Notes: Done recently or in the past couple of years!
HMI Refurbished, New Key Pad
New Pressure Transducer
Replace Proportional Valve
Rings, Seals, Thrust Bearings, etc.
All Pump Cartridges Replaced '16
Replaced GG1, GG2 and GG3 Valves '16
Rebuilt Clamping Unit '17
Tie Bars, Bushings, Seals and 4 Clamping Cylinders
