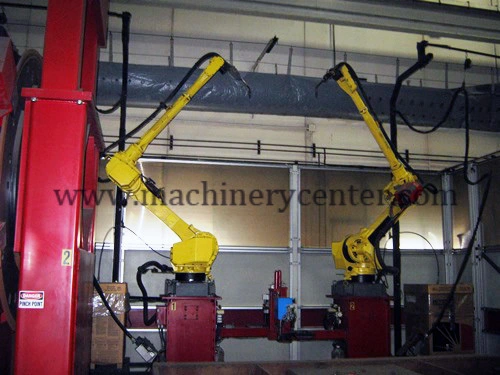

Fanuc Twin Arm Arc Welding Robot '10
J1: 360D/175
J2: 225D/175
J3: 432D/180
J4: 400D/350
J5: 280D/360
J6: 900D/600
J4 Moment/Inertia: 39.2 NM
J5 Moment/Inertia: 22.0 NM
J6 Moment/Inertia: 16.6 NM
Max Reach: 122.44"
One Station:
Stationary Head Stock & Sliding Tailstock
140" Max Tool Length
132" Swing Diameter
10,000 LBS Max Weight Capacity
Second Station:
Stationary Head & Tailstock w/Drop Center Positioner
168" Max Tool Length
132" Swing Diameter
10,000 LBS Max Weight Capacity
Features:
Lincoln i400 Power Supply
Binzel WH500 Water Cooled Torch
2-D Guidance Package
ATI Device
