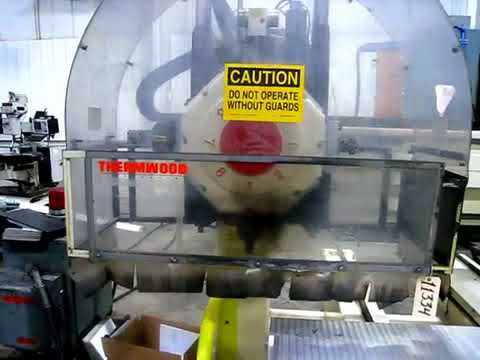

5' x 5' 3 Axis Thermwood CNC Router '99

Name: Machinery Center, Inc.
Address: PO Box 812222,, Boca Raton, FL, 33481, US
Telephone: (561) 953-9100

Have one to sell?

$0.00 USD

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

CNC Router

Manufacturer:

Model:

C-40

Year:

1999

Stock #:

26722

Status:

For Sale

5' x 5' 3 Axis Thermwood CNC Router '99

ImperialMetric

Table Size	5' x 5'	5' x 5'
# of Axis	3	3
X-Axis (Gantry)	70"	70"
Y-Axis (Bridge Travel)	65"	65"
Z-Axis (Travel)	10"	10"
Spindle Speeds	3,000 - 15,000 RPM	3,000 - 15,000 RPM
Control	Thermwood Model 91,000 CNC Control w/CRT & Keyboard	Thermwood Model 91,000 CNC Control w/CRT & Keyboard
Dimensions	95"W x 127"L x 85"H	95"W x 127"L x 85"H
Weight	6,500 Lbs.	6,500 Lbs.

Movable Table Style
Spindle Type: HSD BT30
Feed Rates (X,Y & Z): 1200 IPM

Motor Specifications:
Electrical Controls

5' x 5' Aluminum Table
8 Position Turret Heads
(4) 9 HP Router Heads
(4) 4 HP Drill Heads
