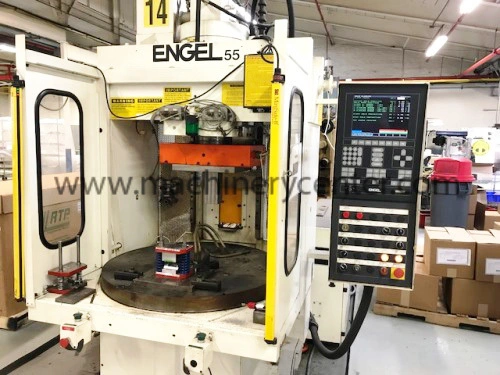

85 Ton, 3.7 Oz. Engel Vertical Rotary Injection Molding Machine '94

85 Ton, 3.7 Oz. Engel Vertical Rotary Injection Molding Machine '94

Have one to sell?
(561) 953-9100
sales@machinerycenter.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Injection Molders - Rotary Type
Manufacturer:
ENGEL
Model:
ES200/85VHRB
Year:
1994
Stock #:
27025
Status:
For Sale

Description

85 Ton, 3.7 Oz. Engel Vertical Rotary Injection Molding Machine '94

Tonnage8585
Shot Size3.73.7
Platen Size21.65" X 13.23"21.65" X 13.23"
Table Diameter38"38"
Ejector Stroke5.0"5.0"
Screw Size45mm45mm
Clamp Stroke11.80"11.80"
Injection Pressure23,200 PSI23,200 PSI
Daylight9.80"(min) X 21.60"(max)9.80"(min) X 21.60"(max)
ControlCC90CC90
Dimensions130"L x 106"W x 118"H130"L x 106"W x 118"H
Weight17,000 Lbs.17,000 Lbs.

Injection Velocity: 4.37" / Sec

3.7 Oz. Injection Unit
Two Position Platen
A Frame Design
Hydraulic Ejectors
