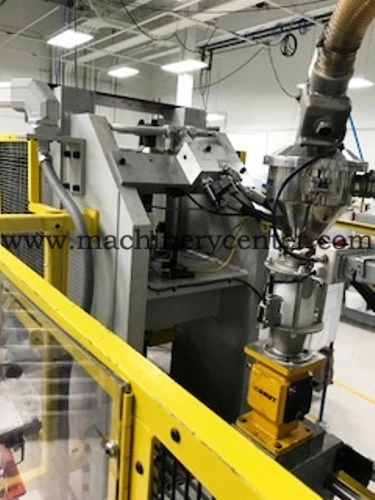

20 Ton, 3 Oz. Gluco Shuttle Injection Molding Machine '10
Injection Molders - Shuttle Type20 Ton, 3 Oz. Gluco Shuttle Injection Molding Machine '10
Tonnage | 20 |
Shot Size | 3 |
Mold Size | 8" |
Clamp Stroke | 9" |
Daylight | Open 16" / Closed 7-3/8" |
Voltage | 460/3 |
PSI | 15,000 psi |
Control | Logics |
Mold Height Weight (Max): 500 Lbs.
Injection Stroke: 5"
- Shuttle Table: 14 x 43 1/4
- 3 Oz. Injection Unit
- C-style Clamp was extended. Molds as large as 10" x 14" have been run in this machine.
- Controls upgraded to allow for selectable choice between shuttle mode or single-station mode. Either
right or left side can be used as the single station.
- Selectable Extra KO circuit and cylinder at "center" position for use in single station mode.
- Single point drive for carriage elevation
- Custom lowered frame operation is sitting position
- Light curtain guarding
- Single point LED touch activation for cycle start
- Zero potential contacts for triggering an additive feeder
