3.5" HPM Single Screw Extruder

Name: Machinery Center, Inc.
Address: PO Box 812222,, Boca Raton, FL, 33481, US
Telephone: (561) 953-9100

Have one to sell?

(561) 953-9100

sales@machinerycenter.com

$25,500.00 USD

ConditionUsed

Quantity

1 available

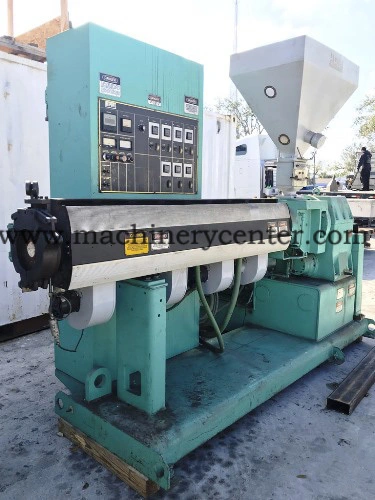

1985 HPM 3.5 TMC Extruders - 3" To 3-1/2" | Machinery Center (1)

1985 HPM 3.5 TMC Extruders - 3" To 3-1/2" | Machinery Center (2)

1985 HPM 3.5 TMC Extruders - 3" To 3-1/2" | Machinery Center (3)

1985 HPM 3.5 TMC Extruders - 3" To 3-1/2" | Machinery Center (4)

1985 HPM 3.5 TMC Extruders - 3" To 3-1/2" | Machinery Center (5)

1985 HPM 3.5 TMC Extruders - 3" To 3-1/2" | Machinery Center (6)

1985 HPM 3.5 TMC Extruders - 3" To 3-1/2" | Machinery Center (7)

1985 HPM 3.5 TMC Extruders - 3" To 3-1/2" | Machinery Center (8)

1985 HPM 3.5 TMC Extruders - 3" To 3-1/2" | Machinery Center

Have one to sell?

Overview

Type:

Extruders - 3" To 3-1/2"

Manufacturer:

HPM

Model:

3.5 TMC

Year:

1985

Stock #:

27032

Status:

For Sale

Description

3.5" HPM Single Screw Extruder

Specifications

ImperialMetric

Inch(es)	3-1/2"	3-1/2"
L/D Ratio	24:1	24:1
HP	50	50
Screw Type	Single	Single
Air Cooled	Yes	Yes
Barrell Zone(s)	4 Heat/Cool Barrel Zones	4 Heat/Cool Barrel Zones
Voltage	480/3/60	480/3/60

Extruder IS Set up to Run with RPVC
Digital Auto Tune Temperature Controllers
(3) Heat ONLY Die Zones
Mercury Relays
New Circuit Breaker Protection and All Associated Wiring & Thermocouples
Motor STOP/START station w/
New Displays & Ten Turn Potentiometer
50 HP DC Motor
1150 RPM High Torque Motor
DC 50 HP DC Motor Control
7.5 KVA 480 VAC to 230 VAC Transformers For Die Power
QTY (4) Blowers For Barrel Cooling
Barrel Heaters Wired For 480 VAC
Digital Pressure Monitor Alarm Audible
250 Lbs. Hopper
24:1 Bimetallic Barrel

3.5" HPM Single Screw Extruder
