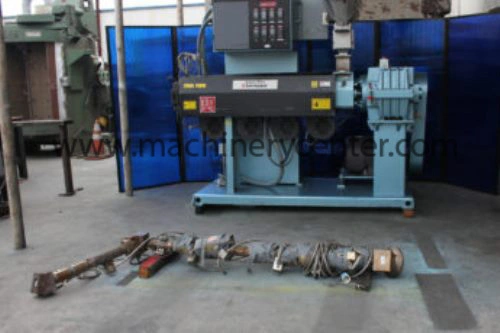

2.5" Davis Standard Single Screw Extruder

Name: Machinery Center, Inc.
Address: PO Box 812222,, Boca Raton, FL, 33481, US
Telephone: (561) 953-9100

Have one to sell?

(561) 953-9100

sales@machinerycenter.com

ConditionUsed

Quantity

1 available

$29,500.00 USD

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (1)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (2)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (3)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (4)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (5)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (6)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (7)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (8)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (9)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (10)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (11)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (12)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (13)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (14)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (15)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (16)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (17)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (18)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (19)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (20)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (21)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (22)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center (23)

2003 DAVIS STANDARD SB250 Extruders - 2" To 2-1/2" | Machinery Center

Have one to sell?

Overview

Type:

Extruders - 2" To 2-1/2"

Manufacturer:

DAVIS STANDARD

Model:

SB250

Year:

2003

Stock #:

27161

Status:

For Sale

Description

2.5" Davis Standard Single Screw Extruder

ImperialMetric

Inch(es)	2-1/2"	2-1/2"
L/D Ratio	24:1	24:1
HP	40	40
Gearbox Ratio	17.26:1	17.26:1
Barrel Zone(s)	3- 700 W (Each)	3- 700 W (Each)
Dimensions	110"L x 55"W x 95"H	110"L x 55"W x 95"H
Weight	6,000 Lbs.	6,000 Lbs.

Dyn Thrust Capacity Of Gear Box: 225,000 Lbs.
Max. Operating Temperature: 600 Degrees F
Screw Speed: 100 RPM
Centerline: 42"

Electrically Heated Air Cooled 4 Zone Barrels
Rectangular Feed Throat
Eurotherm Temperature Controllers

Overview

Type:

Extruders - 2" To 2-1/2"

Manufacturer:

DAVIS STANDARD

Model:

SB250

Year:

2003

Stock #:

27161

Status:

For Sale

Description

2.5" Davis Standard Single Screw Extruder

Specifications

Imperial

Inch(es)	2-1/2"
L/D Ratio	24:1
HP	40
Gearbox Ratio	17.26:1
Barrel Zone(s)	3- 700 W (Each)
Dimensions	110"L x 55"W x 95"H
Weight	6,000 Lbs.

Dyn Thrust Capacity Of Gear Box: 225,000 Lbs.
Max. Operating Temperature: 600 Degrees F
Screw Speed: 100 RPM
Centerline: 42"

Equipped With

Electrically Heated Air Cooled 4 Zone Barrels
Rectangular Feed Throat
Eurotherm Temperature Controllers
