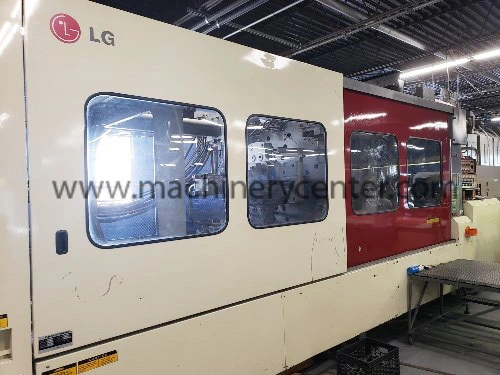

1763 Ton, 343 Oz. Goldstar Injection Molding Machine '03

Have one to sell?

sales@machinerycenter.com

$69,500.00 USD

ConditionUsed

Quantity

1 available

2003 GOLDSTAR IDE1750HM-343 Injection Molders 901 Ton & Over | Machinery Center (1)

2003 GOLDSTAR IDE1750HM-343 Injection Molders 901 Ton & Over | Machinery Center (2)

2003 GOLDSTAR IDE1750HM-343 Injection Molders 901 Ton & Over | Machinery Center (3)

2003 GOLDSTAR IDE1750HM-343 Injection Molders 901 Ton & Over | Machinery Center (4)

2003 GOLDSTAR IDE1750HM-343 Injection Molders 901 Ton & Over | Machinery Center (5)

2003 GOLDSTAR IDE1750HM-343 Injection Molders 901 Ton & Over | Machinery Center (6)

2003 GOLDSTAR IDE1750HM-343 Injection Molders 901 Ton & Over | Machinery Center

Have one to sell?

Overview

Type:

Injection Molders 901 Ton & Over

Manufacturer:

Model:

IDE1750HM-343

Year:

2003

Stock #:

27186

Status:

For Sale

Description

1763 Ton, 343 Oz. Goldstar Injection Molding Machine '03

Specifications

ImperialMetric

Year	2003	2003
Tonnage	1763	1763
Shot Size	343	343
Platen Size	84.60" x 76.80"	84.60" x 76.80"
Tie Bar Spacing	63.00" x 55.10"	63.00" x 55.10"
Mold Height (Min)	31.5"	31.5"
Daylight	31.5"(min)/126"(max)	31.5"(min)/126"(max)
Ejector Stroke	11.8"	11.8"
Clamp Stroke	98.4"/126"	98.4"/126"
Core Pull	Yes	Yes
Control	Hicom 500	Hicom 500
Dimensions	38.4'L x 12.1'W x 10.2'H	38.4'L x 12.1'W x 10.2'H
Weight	205,100 Lbs.	205,100 Lbs.

Equipped With

343 Oz. Injection Unit
Core Pull
Hydraulic Knockout
Robot Interface
