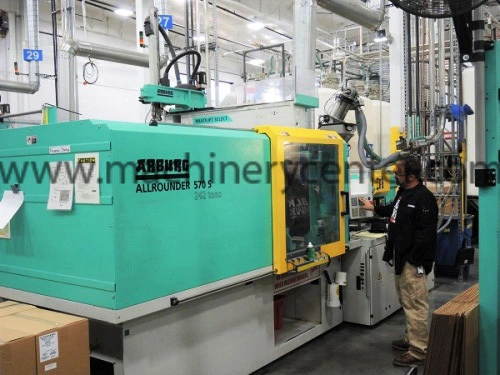

220 Ton, 10.3 Oz. Arburg Allrounder Injection Molding Machine '12

- 10.3 Oz. Injection Unit
- Regulated hydraulic ejector on moveable platen, programmable for simultaneous movements
- Air Blow unit w/1 pressure reduction valve
- Machine related cooling circuits, programmable regulated
- Mold-related cooling water circuit via pipe manifold for supply & return lines attached to fixed & moving platens on non-operator side
- Alarm indicator, acoustic
- 21) Electrical heating control circuits for mold heating, each with max. 2kw/230 V1 (HAN 24 E, assignment according to HASCO, w/o connection cable from machine to mold) suitable for control circuits with a max. temperature increase of 20 deg./s. INCLUDES - Additional control panel & 4 plugs according to DME standards.
- 1) Additional heating regulation circuit for nozzle or for nozzle tip with socket
- 1) Host computer interface OPC UA
- 1) Printer interface, serial USB, for setting parameters, screen panels and for graphics
- 1) Interface for coloring/dosage device
- ARBURG ROBOT SYSTEM MULTILIFT SELECT transverse for 570 C Golden addition. 3 Axis Servo Electric drive.
Travels :
- X (longitudinal): 400mm/15.74"
- Y (vertical, mold entry): 800mm/31.49"
- Z (transversal): 1400mm/55.11"
- C Pivoting axis, pneumatic, swivel0-90 degrees. Both end position monitored and manually adjustable.
- Pneumatic drive incl. valve actuation
- 4) Vacuum circuits
- 4) Gripper circuits
- Safety Fence consisting of fixed wall elements electrically protected hinged door and a prepared opening for conveyor belt.
- Conveyor
