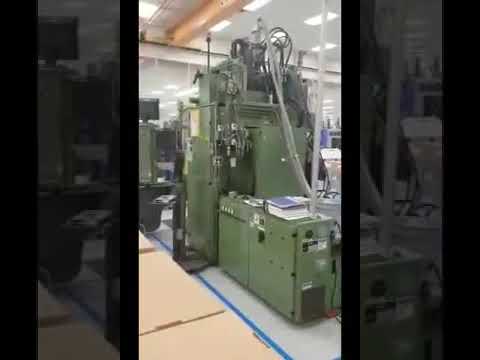

90-5 Engel Vertical/Vertical Injection Molding Machine '02

Name: Machinery Center, Inc.
Address: PO Box 812222,, Boca Raton, FL, 33481, US
Telephone: (561) 953-9100

Have one to sell?

(561) 953-9100

sales@machinerycenter.com

$39,500.00 USD

ConditionUsed

Quantity

1 available

2002 ENGEL ES 330/90 VROTL Injection Molders - Vertical Type | Machinery Center (1)

2002 ENGEL ES 330/90 VROTL Injection Molders - Vertical Type | Machinery Center (2)

2002 ENGEL ES 330/90 VROTL Injection Molders - Vertical Type | Machinery Center (3)

2002 ENGEL ES 330/90 VROTL Injection Molders - Vertical Type | Machinery Center (4)

2002 ENGEL ES 330/90 VROTL Injection Molders - Vertical Type | Machinery Center (5)

Have one to sell?

Overview

Type:

Injection Molders - Vertical Type

Manufacturer:

ENGEL

Model:

ES 330/90 VROTL

Year:

2002

Stock #:

27229

Status:

For Sale

Description

90-5 Engel Vertical/Vertical Injection Molding Machine '02

Specifications

ImperialMetric

Tonnage	90	90
Shot	5	5
Platen Size	27.5" x 17.7"	27.5" x 17.7"
Daylight (Min)	7.48"	7.48"
Daylight (Max)	21.26"	21.26"
Mold Height (Min)	7.48"	7.48"
Ejector Stroke	6.3"/3.1" Above Table	6.3"/3.1" Above Table
Clamp Stroke	11.81"	11.81"
Voltage	460	460
Control	CC100 EL	CC100 EL
Dimensions	137"L x 93"W x 142"H	137"L x 93"W x 142"H
Weight	17,020 Lbs.	17,020 Lbs.

Mold Pitch Cir Diameter: 20.87

Equipped With

5 Oz. Injection Unit
46.45" Rotary Table
SPI Robot interface
PD Graphics & Reports
Micrograph
Microplast/Microflow
Level 2 Software
SPI Safety Key Switch
Rotary Union (Center Hub For Water)
2 or 3 Position Rotary Table
Light Curtains
