198 Ton, 9.6 Oz. Nissei Electric Injection Molding Machine '04

Have one to sell?

sales@machinerycenter.com

ConditionUsed

Quantity

1 available

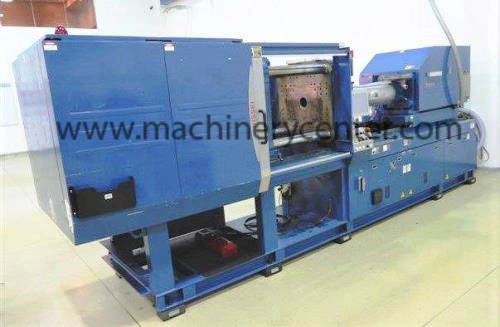

2004 NISSEI NEX4000-36E Injection Molders - Electric | Machinery Center (1)

2004 NISSEI NEX4000-36E Injection Molders - Electric | Machinery Center (2)

2004 NISSEI NEX4000-36E Injection Molders - Electric | Machinery Center (3)

2004 NISSEI NEX4000-36E Injection Molders - Electric | Machinery Center

Have one to sell?

Overview

Type:

Injection Molders - Electric

Manufacturer:

Model:

NEX4000-36E

Year:

2004

Stock #:

27488

Status:

For Sale

Description

198 Ton, 9.6 Oz. Nissei Electric Injection Molding Machine '04
Hours: 31,946

Specifications

ImperialMetric

Year	2004	2004
Tonnage	198	198
Shot Size	9.6	9.6
Platen Size	31.50" x 31.50"	31.50" x 31.50"
Tie Bar Spacing	20.87" x 20.87"	20.87" x 20.87"
Daylight (Min/Max)	37.8"	37.8"
Mold Height (Min)	9.8"	9.8"
Mold Height (Max)	20.1"	20.1"
Clamp Stroke	17.7"	17.7"
Ejector Stroke	4.3"	4.3"
Core Pull	Yes	Yes
Voltage	230	230
Control	Tact	Tact
Dimensions	18.2"L x 4.4"W X 6.5"H	18.2"L x 4.4"W X 6.5"H
Weight	16,755 Lbs	16,755 Lbs

Equipped With

9.6 Oz. Injection Unit
Air Blow
Core Pull
