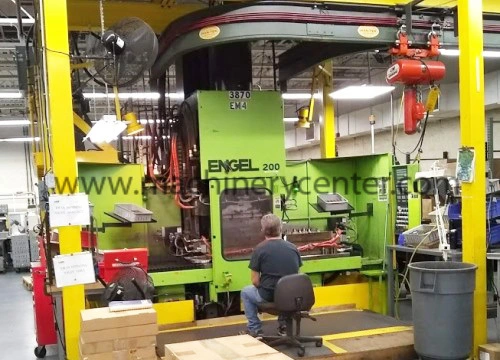

200 Ton, 32.5 Oz. Engel Vertical Thermoset Shuttle Press '99

200 Ton, 32.5 Oz. Engel Vertical Thermoset Shuttle Press '99

Have one to sell?
(561) 953-9100
sales@machinerycenter.com
$19,500.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Injection Molders - Shuttle Type
Manufacturer:
ENGEL
Model:
ES1350H/200V
Year:
1999
Stock #:
27596
Status:
For Sale

Description

200 Ton, 32.5 Oz. Engel Vertical Thermoset Shuttle Press '99

Tonnage200200
Shot Size32.532.5
Platen Size75.70" x 21.10"75.70" x 21.10"
Mold Size5.91"(min)/20.98"(max)5.91"(min)/20.98"(max)
Clamp Stroke18.11"18.11"
Daylight5.91"(min)/39.09"(max)5.91"(min)/39.09"(max)
Voltage460/3/60460/3/60
PSI23,00023,000
ControlEC100 EL A03EC100 EL A03
Dimensions12'L x 11'4"W x 13'H (top of hydraulic hose)12'L x 11'4"W x 13'H (top of hydraulic hose)

32.5 Oz. Injection Unit
Insulating Plates for Platens
Complete Package for molding BMC/Thermoset w/Xaloy
102 Barrel and a D2 through hardened BMC Screw and
Check Assembly in place of standard. Package also includes extended water cooled nozzle, cooling/heating jackets for oil/water media, Screw anti-rotation device, high torque screw drive motor.
2 mold heating zones & receptacles.
Alarm Bell
Hydraulic ejectors moving platen. Centre knock out only Core pull on moving platen
EC100 Level 2 Software
EC100 Microplast/Microflow Processing Software
EC100 Micrograph Plus
EC100 Process Data
Ejector Back Confirmation Input Signal
EC100 PID Mold Temp. Control Zones, 230/1/60 - 16 Amps Each.
EC100 8-Zone Temp/ Control Card
SPI Communications Protocol For Auxiliary Devices
BMC/Thermoset In mold Gate Cutter Sequence
