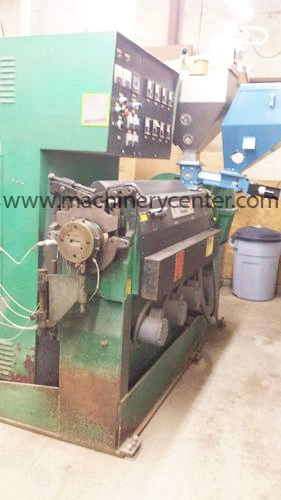

2.5" Davis Standard Extrusion Line

Name: Machinery Center, Inc.
Address: PO Box 812222,, Boca Raton, FL, 33481, US
Telephone: (561) 953-9100

Have one to sell?

(561) 953-9100

sales@machinerycenter.com

ConditionUsed

Quantity

1 available

1986 DAVIS STANDARD 25IN25 Extruders - 2" To 2-1/2" | Machinery Center (1)

1986 DAVIS STANDARD 25IN25 Extruders - 2" To 2-1/2" | Machinery Center (2)

1986 DAVIS STANDARD 25IN25 Extruders - 2" To 2-1/2" | Machinery Center (3)

1986 DAVIS STANDARD 25IN25 Extruders - 2" To 2-1/2" | Machinery Center (4)

1986 DAVIS STANDARD 25IN25 Extruders - 2" To 2-1/2" | Machinery Center (5)

1986 DAVIS STANDARD 25IN25 Extruders - 2" To 2-1/2" | Machinery Center (6)

1986 DAVIS STANDARD 25IN25 Extruders - 2" To 2-1/2" | Machinery Center

Have one to sell?

Overview

Type:

Extruders - 2" To 2-1/2"

Manufacturer:

DAVIS STANDARD

Model:

25IN25

Year:

1986

Stock #:

27618

Status:

For Sale

Description

2.5" Davis Standard Extrusion Line

Specifications

ImperialMetric

Inch(es)	2.5 in	2.5 in
L/D Ratio	24:1	24:1
HP	40HP DC Reliance Motor and Drive	40HP DC Reliance Motor and Drive
Gearbox Ratio	17.28	17.28
Air Cooled	Yes	Yes
Barrel Zone(s)	4	4

(4) Die Zones
Non-vented, air-cooled
Eurotherm 918 temp controllers
(4) Amp meters for barrel zones and motor
Tachometer
Back Pressure readout (Gentran pressure transducer)

Equipped With

Gatto 12' vaccuum tank setup to run halo profile
Gatto puller 24" contact
Gatto traveling saw
Isolation transformer
Indoor Breaker Panel
200 Amp 40/3 Switch Gear
