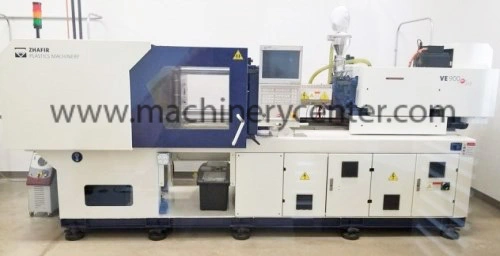

100 Ton, 2.26 Oz. Haitian Electric Injection Molding Machine '12
Injection Molders - Electric100 Ton, 2.26 Oz. Haitian Electric Injection Molding Machine '12
Year | 2012 |
Tonnage | 100 |
Shot Size | 2.26 |
Platen Size | 24.21" x 22.44" |
Tie Bar Spacing | 16.54" x 14.57" |
Daylight (Min/Max) | 27.56" Max |
Mold Height (Min) | 5.91" |
Mold Height (Max) | 14.96" |
Ejector Stroke | 3.15" |
Core Pull | Yes |
Voltage | 460/3/60 |
Control | Sigmatek |
2.26 Oz. Injection Unit
Air Blow Circuits (1 on Movable Platen-1 on Stationary Platen)
SPI Robot Interface
Core Pull Circuits
Spindle Air Blower
Mounting Pads
