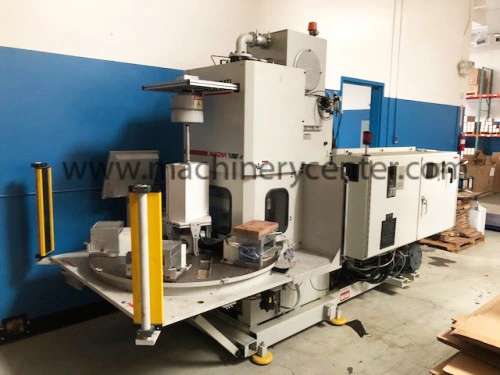

80 Ton, 14.2 Oz. Cincinnati Milacron Rotary Injection Molding Machine '08
Insert Molding Machine Set Up for TPE Molding
Under 5,000 Run Hours!!
Control:
Mosaic Celeron microprocessor control with self diagnostics 15" analog, resistive color TFT touch screen Graphic representation of machine function International control symbols
VERTICAL CLAMP INJECTION MACHINE STANDARD FEATURES
Standard Clamp Features
Pneumatic Mold Safety Gate with Interlock
Mechanical Ratchet Bar
3 Speed Open and Close with Timed Mold Protection
Leveling pads
Centralized manual lubrication (grease fittings)
Stationary table
460/3/60 connecting electrics
Standard Hydraulic Features
Servo Controlled, Variable Displacement Pump w/
Tandem Fixed Volume Pump
Closed Loop Temperature Regulation System w/ Over
Temperature Shut-down
Oil Preheat Circuit
Oil Level Monitoring with Shut-down on High or Low Level
10 Micron Filter w/ Clogged Alarm
Adjustable tonnage
Standard Injection Features
0.5" Radius Tip w/ 1/8" Orifice
Digital Transducer with .001" Resolution
1-10 Step Injection Speed Profile
1-10 Step Hold Pressure Profile
1-10 Step Pack Pressure Profile
1-5 Step Screw Speed Profile
Digital RPM Display
Transfer on Time, Position or Inject Pressure
Screw Recovery Time Monitor
Automatic Cushion Monitor
Cold Start Protection
Closed Loop Feed throat Temperature Control
Greaseless Bearings
Direct Drive Screw
Purge Guard
Two-step profiled sprue break
Hand wheel adjustment of parting line; hydraulic parting line adjustment standard on 45mm horizontal injection frames and larger.
Extruder motor, standard 10470 1 INJ8004 Extended L/D, 14 ounce, D 40 mm
Extend the L/D from 16.36:1 to 19.6:1 for the 14.2 ounce injection size.
10518 1 INJ42070 Modifications, liquid TPE
Provide the following modifications for liquid TPE:
Provide a seal at the end of the feed screw that prevents material from extruding out the end of the
barrel.
Provide a " NPT port located at the standard feed throat. L/D for the 14.2 ounce barrel will be 16.4:1
Chrome plate the shank area of the feed screw.
18009 1 VTB1009 Table, rotary, V80
Standard Rotary Table in place of standard. The rotary machine type utilizes one upper mold half
with multiple lower mold halves. The machine has a horizontal dial that rotates from one station to the next, normally in a clockwise direction, and is precisely positioned with a shot pin. The rotary machine is ideal for secondary operations such as hot stamping, pick and placing, etc., while loading occurs at one station resulting in greater productivity.
Features include:
54" Diameter 2 or 4 Station Rotary Table
2 Speed Proportional Control
All Around Light Curtain
One-touch Cycle Initiation
Rotary Coolant Manifold
18026 1 VTB1027, table, rotary, 5 station, in place of std
Five-station rotary table (one pattern every 72) through the control interface. Option does not include the rotary table. Eject to be at station number 2.
20000 1 460 / 3 / 60 voltage
20050 1 Premier Grey paint (CM-5105)
20100 1 MOSAIC control
