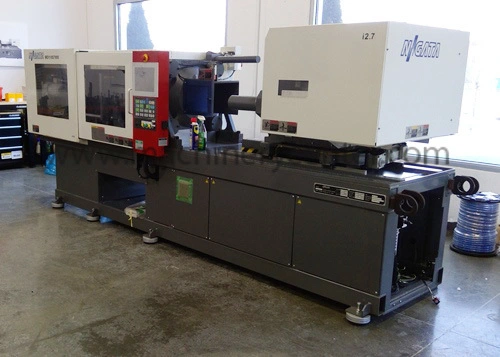

112 Ton, 2.75 Oz. Niigata Electric Injection Molding Machine '19
Injection Molders 101 To 200 Ton112 Ton, 2.75 Oz. Niigata Electric Injection Molding Machine '19
Year | 2019 |
Tonnage | 112 |
Shot Size | 2.75 |
Platen Size | 24.02" x 24.02" |
Tie Bar Spacing | 18.11" x 16.14" |
Mold Height (Min) | 10.63" |
Mold Height (Max) | 12.20" |
Daylight | 31.50" |
Ejector Stroke | 3.94" |
LD Ratio | 20:1 |
Voltage | 220/3/60 |
Core Pull | Yes |
Control | 12.1" Color LCD Touch Panel Control |
Dimensions | 164.3"L x 48.94"W x 63.23"H |
Weight | 10,560 Lbs. |
2.75 Oz. Injection Unit
Core Pull
Air Eject
16 Programmable Inputs/Outputs
Niigata Wear-Resistant Screw and Barrel
3-Color Alarm Light
RJG Interface
SPI Robot Interface
Hopper
