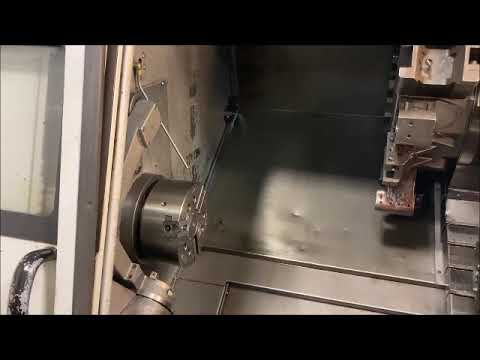

Mazak CNC Lathe '06

Several Live Tool Holders (1 Axis and 1 Radial)
Distance between Spindles: 22.701"

MAIN SPINDLE:
Chuck Size: 8"
Spindle Motor: 25 HP
Standard Bar Capacity: 2"
Spindle Speed: 5,000 RPM
Spindle Nose: A2-6
Spindle Bore: 2.4"

SUB-SPINDLE:
Second Spindle Chuck Size: 6"
Second Spindle Nose: A2-5
Second Spindle Maximum: 5,000 RPM
Second Spindle Power: 10 HP

TURRET:
Turret Type: Modified VDI
Number of Tools: 12
Tool Shank Size: 1.00"
Mill Spindle Power: 5 HP (10 min)
Mill Spindle Maximum: 4500 RPM
X-Axis Travel: 7.50"
Z-Axis Travel: 22.75"
Rapid Traverse Rates X-Axis: 1181 IPM
Rapid Traverse Rates Z-Axis: 1181 IPM
