2755 Ton, 481 Oz. Nissei Hybrid Injection Molding Machine '20

Name: Machinery Center, Inc.
Address: PO Box 812222,, Boca Raton, FL, 33481, US
Telephone: (561) 953-9100

Have one to sell?

(561) 953-9100

sales@machinerycenter.com

ConditionUsed

Quantity

1 available

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (1)

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (2)

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (3)

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (4)

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (5)

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (6)

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (7)

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (8)

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (9)

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (10)

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (11)

2020 NISSEI NUX2500-1100L Injection Molders 901 Ton & Over | Machinery Center (12)

Have one to sell?

Overview

Type:

Injection Molders 901 Ton & Over

Manufacturer:

NISSEI

Model:

NUX2500-1100L

Year:

2020

Stock #:

28007

Status:

For Sale

Description

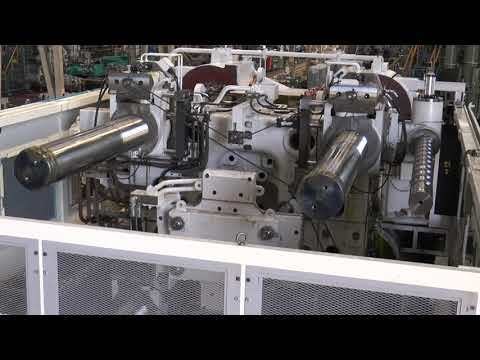

2755 Ton, 481 Oz. Nissei Hybrid Injection Molding Machine '20

Specifications

ImperialMetric

Year	2020	2020
Tonnage	2755	2755
Shot Size	481	481
Platen Size	96.90" x 89.00"	96.90" x 89.00"
Tie Bar Spacing	72.00" x 64.20"	72.00" x 64.20"
Mold Height (Min)	31.5"	31.5"
Mold Height (Max)	63"	63"
Daylight	133.9"	133.9"
Ejector Stroke	13.7"	13.7"
Clamp Stroke	70.9"/102.4"	70.9"/102.4"
Screw Diameter	160mm (6.3")	160mm (6.3")
Voltage	460/3/60	460/3/60
Control	Tact IV	Tact IV

Max Mold Weight Stationary: 30865 lbs. (14t)
Max Mold Weight Movable: 46297 lbs. (21t)
Plasticization Capacity: (PS) 1940.1 lbs./hr.
Max Injection Pressure: 17490 PSI
Injection rate: (cm3/s), 1731,c
Injection Velocity: (mm/s), 86
Screw Speed: 0-100 RPM
Pump Motor KW: 55kw x 5 +11kW
Heater Band Capacity: kW 113.45
