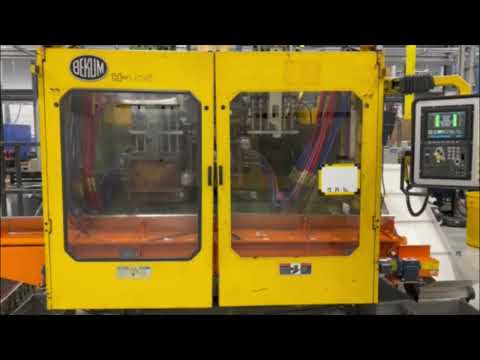

Bekum Continuous Extrusion Blow Molding Machine

Name: Machinery Center, Inc.
Address: PO Box 812222,, Boca Raton, FL, 33481, US
Telephone: (561) 953-9100

Have one to sell?

$239,500.00 USD

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

Blow Molders - Extrusion

Manufacturer:

Model:

H-155

Condition:

Good

Stock #:

28155

Status:

For Sale

Bekum Continuous Extrusion Blow Molding Machine

ImperialMetric

Screw Size	90mm	90mm
Type	Continuous Extrusion	Continuous Extrusion
Station(s)	2	2
Extruders	90mm	90mm
# of Heads	(3) parison head with 100 mm center distances between dies	(3) parison head with 100 mm center distances between dies
Clamp Force	11.2 Ton	11.2 Ton
Control	Barber Colman Maco 6500 PLC	Barber Colman Maco 6500 PLC

Mold width: 420 mm
Mold depth: 2 x 130 mm
Daylight opening: 220 mm

Offer includes the following:
Proco Automated Take Out and Trimming System
Extruder feed hopper

Standard Centerline Distances:
4 Cavities: 215 mm
6 Cavities: 125 mm
8 Cavities: 100 mm
10 Cavities: 80 mm
12 Cavities: 70 mm
16 Cavities: 50 mm
