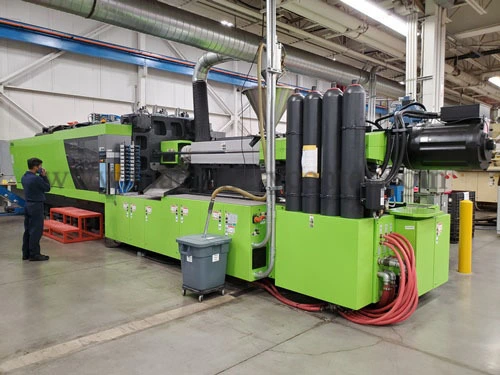

e-speed 720 Ton, 58.09 Oz. Engel Injection Molding Machine '18
Injection Molders 701 To 800 Tone-speed 720 Ton, 58.09 Oz. Engel Injection Molding Machine '18
High Speed Packaging Machine!!!
LIKE NEW!!!!!
** Less then 1000 Operating Hours!!!!! ** (Used for try-out only)
ENGEL e-speed
Maximum output, maximum productivity.
- Ultra-short cycle times
- High performance, servo-electric high-speed toggle lever system with exposed tie-bars and linear
guidance for ultra-fast, harmonious and friction-free motion
- Focus on consistent high performance: stable base frame, proven high-performance drive technology and
modular system components
- Maximum plasticising performance and precision thanks to servo-electric screw drive and barrier screw
together with gentle melt preparation
Year | 2018 |
Tonnage | 720 |
Shot Size | 58.09 |
Platen Size | 60.24" x 60.24" |
Tie Bar Spacing | 41.34" x 41.34" |
Mold Height (Min) | 19.69" |
Mold Height (Max) | 46.46" |
Daylight | 55.12"(Min) / 70.87"(Max) |
Ejector Stroke | 11.81" |
Clamp Stroke | 39.37" |
Screw Diameter | 4.13" |
LD Ratio | 25:1 |
Voltage | 480 |
Core Pull | Yes |
Control | Euromap |
Control | CNC (Microcomputer CC300 Package) |
Dimensions | 477"L x 106.3"W x 110.2"H |
Weight | Clamp: 71,600 Lbs. / Injection Unit: 38,000 Lbs. |
High-Execution Clamping Unit.
Additional Set Of Bearings for Extra Mould Support (To Support Stack Molds)
Platens 50mm Reinforced
Min Mold Height + 900mm
Max Mold Height +900mm
Double Hydraulic Core-Pull on Stationary Platen
Double Pneumatic Corepull on Moving Platen
Double Pneumatic Corepull on Stationary Platen
Injection Unit Swiveling
Speed Controlled Electric Screw Drive
S13 Barrier Screw, L/D25 (90mm)
M3 Barrel Elongated Bi-Metallic Abrasion and Corrosion Resistant
Pneumatic Shut off Nozzle
** Full Build Sheet & Prints available upon request
