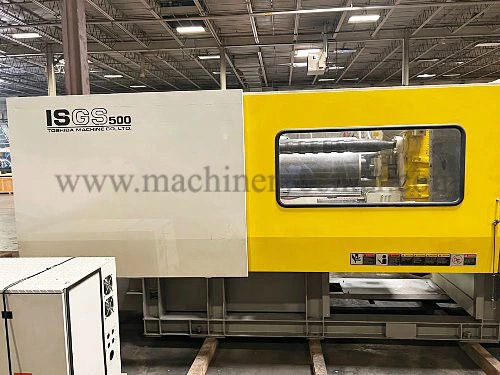

500 Ton, 48 Oz. Toshiba Injection Molding Machine '15

Name: Machinery Center, Inc.
Address: PO Box 812222,, Boca Raton, FL, 33481, US
Telephone: (561) 953-9100

Have one to sell?

(561) 953-9100

sales@machinerycenter.com

$189,500.00 USD

ConditionUsed

Quantity

1 available

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (1)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (2)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (3)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (4)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (5)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (6)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (7)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (8)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (9)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (10)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (11)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (12)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (13)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center (14)

2015 TOSHIBA SHIBAURA ISGSW500V50-27AT Injection Molders 401 To 500 Ton | Machinery Center

Have one to sell?

Overview

Type:

Injection Molders 401 To 500 Ton

Manufacturer:

TOSHIBA SHIBAURA

Model:

ISGSW500V50-27AT

Condition:

Excellent

Year:

2015

Stock #:

28201

Status:

For Sale

Description

500 Ton, 48 Oz. Toshiba Injection Molding Machine '15
Approx. 25,000 Hours

Specifications

ImperialMetric

Year	2015	2015
Tonnage	500	500
Shot Size	48	48
Platen Size	48.4 x 48.4”	48.4 x 48.4”
Tie Bar Spacing	34.2 x 34.2”	34.2 x 34.2”
Daylight	55.1”	55.1”
Ejector Stroke	6.3"	6.3"
Clamp Stroke	41.3”	41.3”
Core Pull	Yes	Yes
Control	Injectvisor V50	Injectvisor V50
Dimensions	23.6’ x 7’ x 7’H	23.6’ x 7’ x 7’H
Weight	25,000 Lbs	25,000 Lbs

75 HP

Equipped With

48 Oz. Injection Unit
Hydraulic Core pull-Dual
Dual Air blow
Heater band Failure Alarm
Low Oil level Alarm
Mold Valve Gate 1 zone air
Mold Ejector Plate Monitor
Color Feeder Signal
SPI Robot Interface
Pads, hopper, instruction manual
