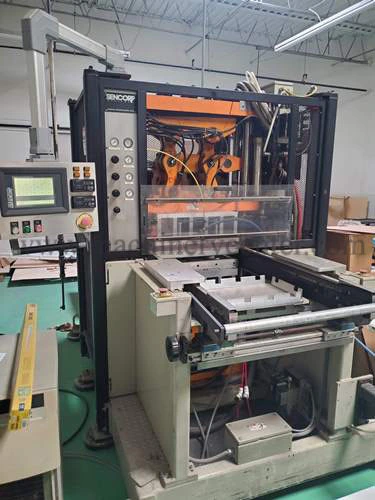

Form And Trim-In-Place Press
Min. Mold Size: 15.5" x 6.75"
Max. Part Depth: 3.0"
Max. Clamp Force: 48 Tons
Shut Height From Sheet Line: 10" (Top) 10" (Bottom)
Upper Platen Travel: 3.5"/2.38"/1.25"
Lower Platen Travel: 3.5"/2.38"/1.25"
Lower Platen Bump Travel: 0.2"
Index Maximum: 14.7"

Unwind Station:
Core Dia: 3.0"
Max. Roll O.D.: 21"
Max. Roll Width: 25.75"
Max. Roll Weight: 500 Lbs.

Sheet Transport System:
Chain Rail Adjustment: 24.25"
Max. Sheet Width: 25.5"
Min. Sheet Width: 17"
Sheet Thickness: .20"

Control: Nema 12
