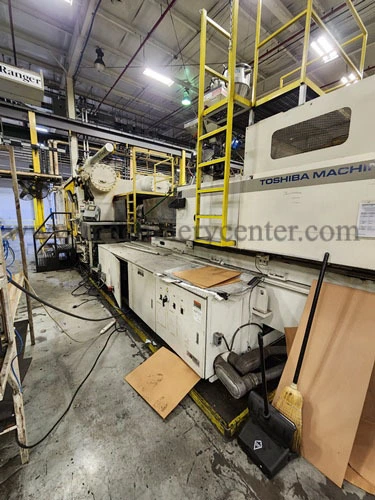

1450 Ton, 344 Oz. Wide Platen Toshiba Injection Molding Machine '02
Have one to sell?
ConditionUsed
1 available
$34,500.00 USD
1450 Ton, 344 Oz. Wide Platen Toshiba Injection Molding Machine '02
Model: ISG1450DWV21-150B
Screw Displacement: 21.5 Lbs.
Intensification Ratio: 10.0:1
Max PPSI: 19,900ppsi
Max Injection Velocity: 3.33"/Sec
Clamp Dimensions: Clamp Dim: 20' (L) x 10' (W) x 8' (H)
Clamp Weight: 98,000 Lbs.
344 Oz. Injection Unit
Dual Core Pull
Valve Gates
SPI Interface
1450 Ton, 344 Oz. Wide Platen Toshiba Injection Molding Machine '02
Model: ISG1450DWV21-150B
Imperial
| Year | 2002 |
| Tonnage | 1450 |
| Shot Size | 344 |
| Platen Size | 78.3" x 78.1" |
| Tie Bar Spacing | 55.1" x 55.1" |
| Mold Height (Min) | 27.6" |
| Mold Height (Max) | 47.3" |
| Daylight | 98.4" |
| Ejector Stroke | 9.8" |
| Ejector Force | 31 Tons |
| Clamp Stroke | 51.2" x 70.9" |
| Screw Diameter | 5.51"/140mm |
| LD Ratio | 10:1 |
| Voltage | 450 Volts |
| Core Pull | Yes |
| Control | V-21 |
| Horz/Vert | Horz |
| Control | CNC |
| Dimensions | 37.9' (L) x 10.5' (W) x 10.4'(H) |
| Weight | 141,000 lbs. |
Screw Displacement: 21.5 Lbs.
Intensification Ratio: 10.0:1
Max PPSI: 19,900ppsi
Max Injection Velocity: 3.33"/Sec
Clamp Dimensions: Clamp Dim: 20' (L) x 10' (W) x 8' (H)
Clamp Weight: 98,000 Lbs.
344 Oz. Injection Unit
Dual Core Pull
Valve Gates
SPI Interface
