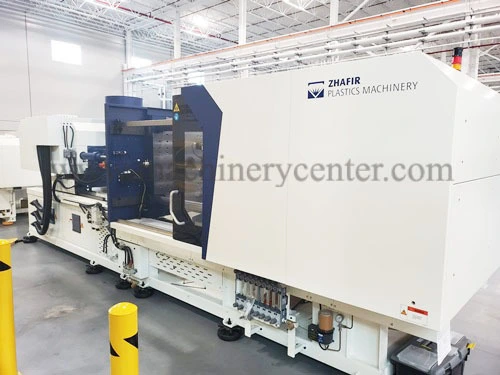

337 Ton, 23.56 Oz. Haitian Zhafir ZERES III Series Injection Molding Machine '22

337 Ton, 23.56 Oz. Haitian Zhafir ZERES III Series Injection Molding Machine '22

Have one to sell?
(561) 953-9100
sales@machinerycenter.com
ConditionUsed
1 available
Have one to sell?

Document (1)

Ref#28283-ZEIII3000-1400.pdf

Overview

Type:
Injection Molders 301 To 400 Ton
Manufacturer:
HAITIAN
Model:
ZEIII3000-1400
Year:
2022
Stock #:
28283
Status:
For Sale

Description

337 Ton, 23.56 Oz. Haitian Zhafir ZERES III Series Injection Molding Machine '22
Model: ZEIII3000-1400

Year20222022
Tonnage337337
Shot Size23.5623.56
Platen Size40.94" x 40.94"40.94" x 40.94"
Tie Bar Spacing28.74" x 28.74"28.74" x 28.74"
Mold Height (Min)11.02"11.02"
Mold Height (Max)25.59"25.59"
Daylight49.21"49.21"
Ejector Stroke6.3"6.3"
Ejector Force7.71 US Tons7.71 US Tons
Screw Diameter2.36"2.36"
LD Ratio2020
VoltageAC460V 3P/PE 60HzAC460V 3P/PE 60Hz
Core PullYesYes
Dimensions295"L x 83"W x 98"H295"L x 83"W x 98"H
Weight35,494 Lbs.35,494 Lbs.

NOTE this machine does have a 100mm increase to the max mold height.
This is an electric press with built hydraulics for the ejectors, pull in cylinders, CP and hydraulic valve gate.
Mold Opening Stroke: 23.62"
Mold Dimension Min: 18.5" x 18.5"
Max Mold Weight on M.P.: 4850 Lbs.
Max. Mold Weight Full Set: 7716 Lbs.
Injection Rate(PS): 13.93 Oz./Sec

23.56 Oz. Injection Unit
Included Options: Core Pull, Air Blast, Robot Interface, Hydraulic Valve Gate, Pneumatic Valve Gate
