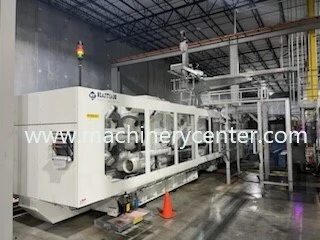

1000 Ton, 185 Oz. Haitian Hybrid Injection Molding Machine '19
Injection Molders 901 Ton & Over
1000 Ton, 185 Oz. Haitian Hybrid Injection Molding Machine '19
Model: MA9000
New: 2019 (Installed 2020)
| Year | 2019 |
| Tonnage | 1000 |
| Platen Size | 57.92" x 57.92" |
| Tie Bar Spacing | 42.00" x 42.08" |
| Mold Height (Min) | 21.65" |
| Mold Height (Max) | 54.33" |
| Ejector Stroke | 11.81" |
| Core Pull | Yes - 3 |
| Control | Keba i2000/i5000 (JU Series) |
185 Oz. Injection Unit
Core Pull
(4) Hydraulic Valve Gates
Increase Max Mold Height by 300mm (min. mold height also increased by 300mm)
Water Manifolds
Conveyor
