3.5" Welex Extruder

Name: Machinery Center, Inc.
Address: PO Box 812222,, Boca Raton, FL, 33481, US
Telephone: (561) 953-9100

Have one to sell?

(561) 953-9100

sales@machinerycenter.com

ConditionUsed

Quantity

1 available

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (1)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (2)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (3)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (4)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (5)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (6)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (7)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (8)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (9)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (10)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (11)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (12)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (13)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center (14)

WELEX 350 RHNV Extruders - 3" To 3-1/2" | Machinery Center

Have one to sell?

Overview

Type:

Extruders - 3" To 3-1/2"

Manufacturer:

WELEX

Model:

350 RHNV

Stock #:

28372

Status:

For Sale

Description

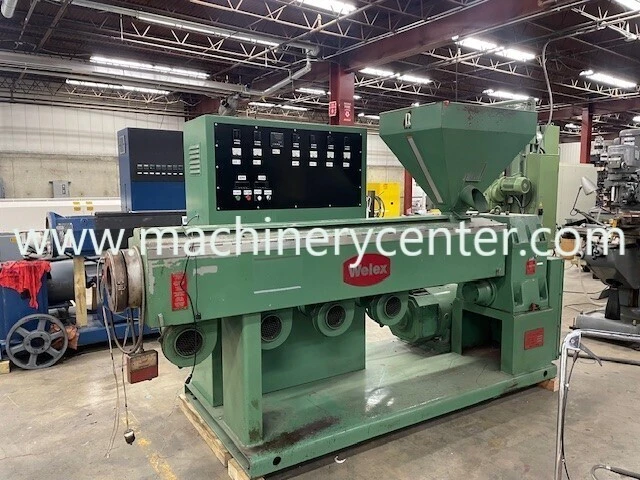

3.5" Welex Extruder

Specifications

ImperialMetric

Inch(es)	3.5	3.5
L/D Ratio	241	241
HP	75	75
Gearbox Ratio	11.8:1	11.8:1
Air Cooled	Yes	Yes
Barrell Zone(s)	4	4
Dimensions	134"L x 49"W x 80"H	134"L x 49"W x 80"H

Equipped With

Belt Driven, 11.8:1 Ratio 153HP Welex PEZS36.W Gearbox
42.5 Centerline Height, Square Feed Throat, Air-Cooled Barrel
Screw and Hopper Included, Clamp Barrel Flange
75HP DC 1750 RPM WER Industrial Electrostat Motor
Fan Cooled Emerson Spectrum Drive, NEW Novus Temperature Controllers
4 Barrel Zones and 2 Die Zones, Mercury Contactors
Amp Gauges for Temp Control Zones, NEW Tachometer, NEW Amp Gauge for Drive, NEW Speed Pot
NEW Melt Pressure/Temp Gauge
Very Consistent Barrel, Maddock Mixer Screw
