| Year | 2016 | 2016 |
| Tonnage | 225 | 225 |
| Shot Size | 10 | 10 |
| Platen Size | 36.06" x 36.06" | 36.06" x 36.06" |
| Tie Bar Spacing | 24.80" x 22.05" | 24.80" x 22.05" |
| Mold Height (Min) | 13.78" | 13.78" |
| Daylight | 41.33" | 41.33" |
| Opening Stroke | 27.55" | 27.55" |
| Voltage | 460 | 460 |
| Control | MC6 | MC6 |
| Dimensions | 18'9" L x 8' W x 9'2" | 18'9" L x 8' W x 9'2" |
| Weight | 23,149 Lb | 23,149 Lb |
Injection Stroke: 7.87"
Barrel Type: Electric
24 Hot Runner Zones
Adjustable heating zones: 5
10 Oz. Injection Unit
Krauss Maffei Robot (Approx. Replacement Cost: $60,000.00)
Electric interface 8-fold
Mechanical robot interface
Hydraulically actuated ejector plate
External bypass oil filtration
Hydraulic core pull system
24 hot runner control circuits
1 additional temperature zone
Electric interface
Data interface
Mould coding system
Additional vacuum valve with blow off function

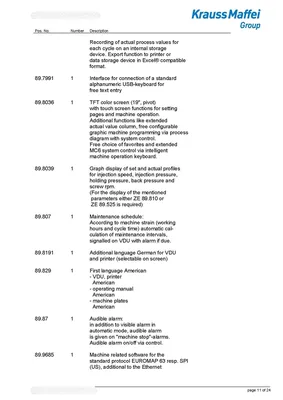

*CLICK ON PHOTOS TO SEE COMPLETE LIST OF OPTIONS
