| X | 84" | 2,133.6 mm |
| Y | 40" | 1,016 mm |
| Z | 42" | 1,066.8 mm |
| Power | 24 hp | 17.9 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 50 | 50 |
| Taper | CAT 40 | CAT 40 |
| # Axis | 5 | 5 |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 184"L x 116"W x 130"H | 184"L x 116"W x 130"H |
| Weight | 29,000 Lbs. | 29,000 Lbs. |

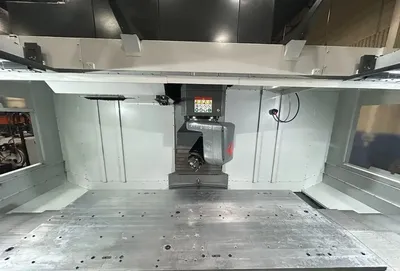

Dual-axis spindle head
±245° of C-axis rotation, ±120° of B-axis tilt
5-axis simultaneous machining
Powerful axis brakes for rigid 3+2 machining
20,000 RPM Dual Support Spindle, HSK-A63 taper
Includes Tool Center Point Control
Haas CNC Control with Touch Screen
Chip Auger
8" Extended Z-Axis Clearance
Large Remote Jog Handle with Touchscreen Display
Rigid Tapping
50+1 Side Mount Tool Changer, HSK
Wireless Intutive Probing System
Internal High Voltage Isolated Transformer
High Intensity Lighting
Coolant Tank Oil Skimmer
Power: 440/3/60
Spindle Motor 24 HP
High Pressure Flood Coolant
(Aluminum sub plate not going with machine)
Inspect Under Power in Shop. Bought for a Medical Project and only ran Samples.

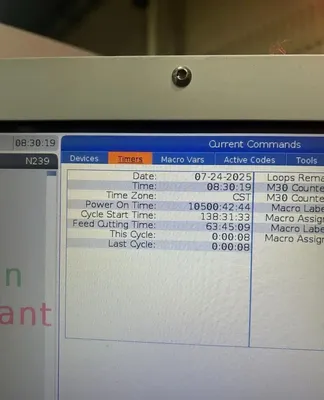

ONLY 63 Cutting Hours
This equipment has been sold. Similar equipment available now is shown below.
